Explosion Proof Pneumatical Foot Mounted Wire Rope Hoists SH Fixed 1/2

Hangzhou Nante Machinery Co.,Ltd.

Explosion Proof Pneumatical Foot Mounted Wire Rope Hoists SH Fixed 1/2

Place of Origin : Zhejiang, China

Model Number : CD/MD

Price : N/A

Packaging Details : Container packing

Delivery Time : Based on client's needs

Supply Ability : 100000 Sets per Year

Brand Name : NANTE

Certification : CE,ISO

MOQ : 1 SET

Payment Terms : L/C, T/T

Capacity : 0.5-20t

Lifting height : 6-30m

Traveling speed : 20m/min

Rope reeling : 2/1, 4/1

Contact Now

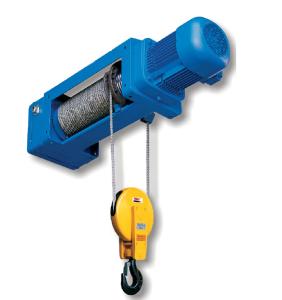

Explosion Proof Pneumatical Foot Mounted Wire Rope Hoists SH Fixed 1/2

This type of stationary steel wire rope travelling hoist with quadrate simpler design has its particular advantage for compact quadrate structure and internal configuration. Planetary gear reducer is adopted to ensure high transmission efficiency. It is characterized by low noise, compact structure, omitting the intermediate shaft. The square appearance is easier to install and fix. In addition, the lifting hook is designed to prevent accidental slippage; Motor has the thermal protection device, which will automatically cut off to prevent damage when the temperature is too high.

With the ideal design, we can ensure high safety as well as working efficiency. Load limit protection device is optional to avoid overload-induced adverse consequences.

Features:

1) Steel rope electric hoist, newest design with quadrate outline, modularized

construction, and good unitized capability

2) The fundamental mode change combine is very convenient and multiform

3) The special drive composition method is very stationary which saves the usual long

transmission shaft

4) The reducer use plant speed-down drive is highly effective, low noise and long

lifespan

5) Unique column rotor-taper breaking wheel motor with disk is low noise and reliable

6) With the advanced technology from overseas, the guide rope unit is very reliable

and safe

7) High precision and super mechanical spin limit

8) High quality electric control component with low malfunction

9) The products from 400kg to 50MT, complying with the international standard

A wire rope hoist is a hoist that utilizes wire rope as the lifting medium. It is often powered electrically or pneumatically. This lifting device is made up of a rope storage drum, motor(s), gear box and braking system, and is suspended from a monorail or bridge beam(s) by means of a trolley. It may also be stationary mounted.

A crane is a machine used for lifting and lowering a load, and moving it horizontally. A crane's drives may be manual, powered or a combination of both. Cranes are typically used when there is insufficient (or intermittent) flow volume such that the use of a conveyor cannot be justified. They provide more flexibility in movement than conveyors, and less flexibility in movement than industrial trucks. Loads handled by cranes are more varied with respect to their shape and weight than those handled by a conveyor. Most cranes utilize hoists for vertical movement, although manipulators can be used if precise positioning of the load is required.

Custom Built Hoists:

● Various Capacities

● Double Girder, Monorail, Jib cranes etc.

● All Types of Open Winches

● Polar Trolley Hoists

● Critical Lift

● Twin Hook

● Quadruple Hook

● Explosion Proof

● Indoor or Outdoor Use

● Transfer Cars

● Hazardous Locations

● Two Drum Bucket

● Automated Hoisting Systems

● Hot Metal Steel Mill Hoists - AC/DC

Whether chain hoist or wire rope hoist, electric or pneumatic; our line of powered hoists are ideal in manufacturing, power generation, and industrial facilities where heavy items are lifted and positioned as part of production or warehousing. Our new model high-capacity wire rope hoist complements our line with capacities up to 50 Tons. We offer a full line of manual hoists, both hand chain and lever tools, which are used primarily for maintenance and construction activities.

1 ton thru 5 ton Electric Hoists

3 ton thru 15 ton Monorail Wire Rope Hoists

5 ton thru 40 ton Top Running Wire Rope Hoists

Custom Built Hoists:

1. Various Capacities

2. Double Girder, Monorail, Jib cranes etc.

3. All Types of Open Winches

4. Polar Trolley Hoists

5. Critical Lift

6. Twin Hook

7. Quadruple Hook

8. Explosion Proof

9. Indoor or Outdoor Use

10. Transfer Cars

11. Hazardous Locations

12. Two Drum Bucket

13. Automated Hoisting Systems

14. Hot Metal Steel Mill Hoists - AC/DC

Explosion Proof Pneumatical Foot Mounted Wire Rope Hoists SH Fixed 1/2

Technical Data of Foot-mounted Electric Wire Rope Hoist SH Fixed 1/2

Model Lifting
Capacity
(t)
Working
Duty
Lifting
Motor
Power(kw)
Lifting
Speed
(m/min)
Dimension L A AO B Hmin L1 Wheel
Diameter
(mm)
6m 9m 12m 18m 24m 30m
SH2A(2/1) 0.5 M4 1.1
1.1/0.3
9
9/2.2
L 534 661 678 813 948 1083 256 192 244 410 281 13
LO 223 291 358 493 628 763
S 66 99 132 198 264 330
SH3A(2/1) 1 M4 1.5
1.5/0.4
8.5
8.5/3.2
L 886 983 1080 1274 1468 1662 264 194 244 430 390 18
LO 324 421 518 712 906 1100
S 96 144 192 288 384 480
SH4-2/1A 2 M4 3
3/0.8
7.3
7.3/1.8
L 1032 1136 1240 1449 1657 1866 325 245 300 520 462 18
LO 389 493 597 806 1014 1223
S 104 156 209 313 417 521
SH5-2/1A 3 M4 4.5
4.5/1.0
7
7/1.6
L 1160 1279 1379 1597 1815 2033 360 280 335 600 550 18
LO 414 524 633 851 1069 1287
S 110 164 219 328 437 546
SH6-2/1A 5 M4 7.5
7.5/2.0
7.3
7.3/1.8
L 1235 1350 1464 1693 1922 2151 403 309 370 700 550 22
LO 459 574 688 917 1146 1375
S 118 177 236 354 472 590
SH7-2/1A 8 M4 13
13/3.2
8
8/2
L 1473 1590 1706 1939 2172 2405 470 350 440 760 725 26
LO 505 622 738 971 1204 1473
S 117 175 233 350 466 583
