Singer Girder Overhead Crane FEM Standard for Industrial Workshop
Main Features:
1. NANTE Single girder overhead crane follow FEM standard.
2. Nante design and fabricate the main girder which combines light weight construction with heavy weight strength, power and durability.
3. The low headroom design leads to optimization of the work area to the users benefit.
4. Nante use hollow shaft end carriage, the transmission efficiency is higher than open gear end carriage.
5. The control panel follow IEC standard.
6. Nante provide the crane with necesary safety device, like load limited switch, rotational limited switch, cross limited switch.

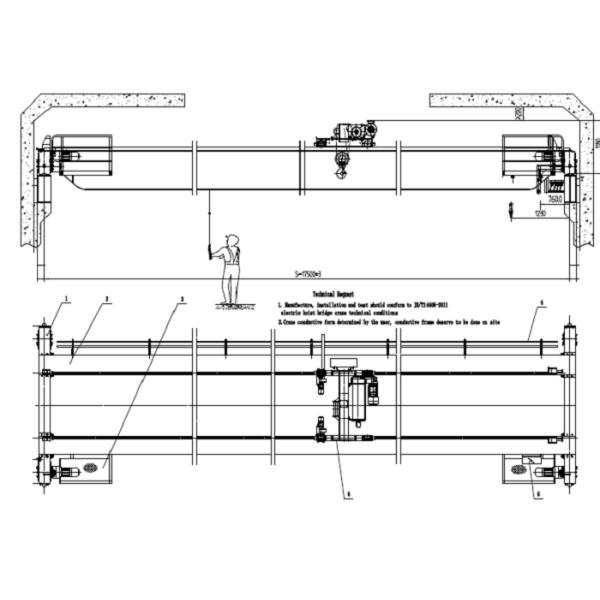

General Drawing or Sketch or Draft Drawing
Technical Parameters
| Capacity | Span | Lifting Height | Power | Long travel Mechanism | Cross Travel
Mechanism |
| Pendent | Cabin | Hoist Type | Lifting Speed | Trave
lling Speed |
| Speed | Motor | Power | Speed | Motor | Speed | | | |
| t | m | | m/min | Model | kW | m/min | Model | kW | | m/min |
| 5 | 7.5 | 6;9;12; | 3P AC 380V50
Hz | 28.72 | YSE802-
4D | 2×0.8 | 42.9 | YSE90L-4D | 2×1.5 | CD1
(MD1)5-(6,9,12)
-A2 | 8;8/0.8 | 17 |
| 10.5 |
| 13.5 |
| 16.5 |
| 19.5 |
| 22.5 |
| 10 | 7.5 | YSE90L
-4D | 2×1.5 | CD1
(MD1)10-(6,9,12)-A2 | 7;7/0.7 |
| 10.5 |
| 13.5 |
| 16.5 |
| 19.5 |
| 22.5 |
| Rail Dia. | Tread Width | Max. Wheel Load | Total Weight | Dimension | |
| K | W | L | L1 | H | H1 | H2 | h | |
| |
| mm | KN | t | mm | |
| Ф300 | 37-70 | 34.43 | 4.9 | 1500 | 3000 | 3550 | 120 | 1163 | 781 | 578 | -3 | |
| 38.04 | 5.86 | 17 | |
| 40.9 | 6.78 | 107 | |
| 44.13 | 7.98 | 187 | |
| 47.17 | 9.2 | 267 | |
| 50.28 | 10.7 | 347 | |
| 57.28 | 5.6 | 121 | 1374 | 863 | 620 | 47 | |
| 62.68 | 6.68 | 187 | |
| 67.38 | 8.04 | 277 | |
| 72.03 | 9.65 | 427 | |
| 76.66 | 11.37 | 527 | |
| 80.99 | 13.05 | 607 | |
LH European Design Overhead Crane
NANTE European style electric hoist overhead cranes combine light weight construction with heavyweight strength, power and durability. Their superb handling characteristics together a with a wide range of standard and optional features makethem an automatic first choice for application requiring optimallifting equipment with long term reliability.
Compact design, optimal space utilization
Because of the unique dimensions of NANTECRANE,the floor area under the crane is used more efficiently. The small space requirement and the lightweight, durable construction of NANTECRANE lead to optimization of the work area to the users benefit. Compared to any other type of cranes, NANTE cranes enable a reduction in the structural requirements of rails, runway beams and columns, and the overall height of the building. Consequently, NANTE cranes begin its own payback by reducing building construction costs
.
Superior safety and reliability
In developing the NANTE crane, NANTE utilized its vast experience in diverse customer applications and its extensive resources, combined with know-how from skilled staff, each crane ensures reliability and quality to users. Our design and experience enables the product to be adapted to your specific production process requirements. And serial production of cranes, ending with full load factory testing of every crane, certifies the functionality of all machinery and equipment, and serial production of crane.
